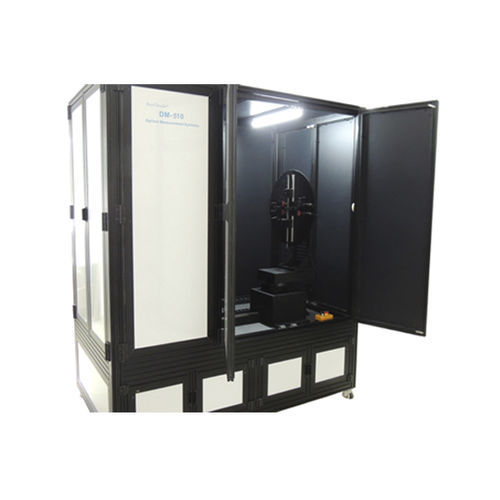

Optical measurement system DM-510

luminanceanglecontour

LCD display optical characteristics automatic measurement system is mainly used in LCD, LED screen, OLED screen, FPD, Mini LED, Micro LED and various new luminous materials. LCD display optical characteristic automatic measurement system supports the test of optical performance parameters such as viewing angle, luminance, uniformity, contrast, chrominance, response time, flicker, and refresh rate, etc. According to the specific measurement requirements of users, we can provide customized system integration and design solutions! It is suitable for testing the optical characteristics of products such as laboratory research and development or production line quality inspection. Using optical platform (easy to removal) Five-axis structure Mechanical structure: vertical Size: within 14 inches The product rotates along two axes in the direction of H and V, and is equipped with a limit switch in both positive and negative directions Two instruments can be installed at the same time, and can be switched by software Optional darkroom structure LCDTest professional measurement software Contour map, CIE colorimetric analysis, perspective distribution map Manual and automatic system control for initial positioning Tested product does not require fixed right-angle boundaries Uniformity test of 5 points, 9 points, 13 points, 25 points, dot matrix test, viewing angle test Cooperated with signal generator to automatically provide a variety of signals Excel data report Automatic tracking algorithm of tested point Site installation, commissioning and training Free software upgrade
