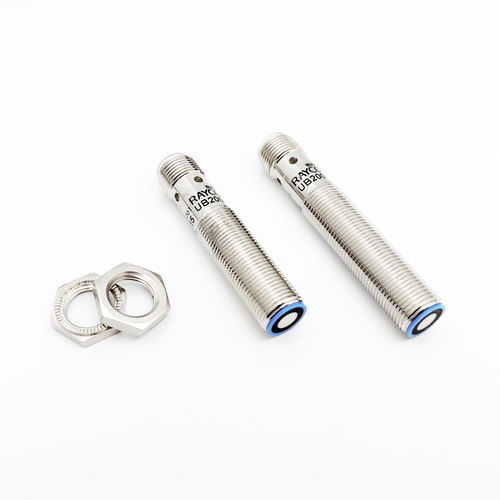

Diffuse reflective ultrasonic sensor UB120-12GM

M12 external thread installation, short design. ♦ Measuring distance of 200/120mm ♦ Switch output/analog output /RS485 output /IO-link output ♦ External synchronization function ♦ Température compensation function Ultrasonic sensors show excellent performance in the application of non-contact positioning and distance measurement. It is not affected by color and shape, and is not limited by the material of the measured object, so it is widely used in industrial automation scenes. Target market of ultrasonic sensors: • Industry - • Packaging Machinery • Mobile Equipment - • Manufacturing and equipment engineering • Process equipment - • New energy manufacturing equipment • Material handling - «Gâte control • Monitoring and control of water level and material level • Printing, paper and post-press Processing - • Textile machinery • Intelligent city environment détection and control Features >M12cylindrical >Small blind area, suitable for close-range fine détection Détails >1 npn or pnp switch output >2 npn or pnp switch output > Analog voltage output 0-1OV or analog current output 4-20mA >The teach-in function is realized by the g ray line >Temperature compensation >Standard working voltage 10-30V | Electrical data Power-Up Timer - 1k Ohm Material - Copper nickel plating, plastic fittings, glass filled epoxy resin.
