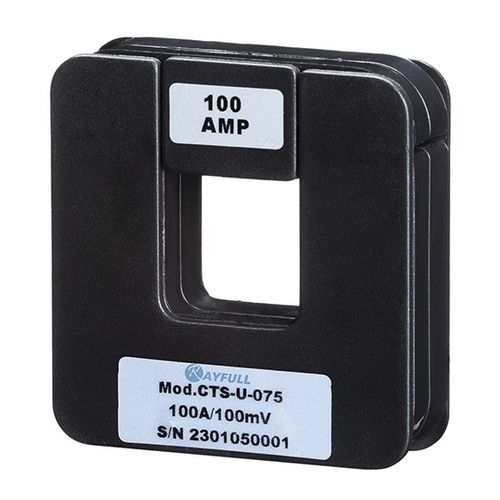

Current transformer CTS-U Seriessplit-coreindustrialfor energy meters
Add to favorites
Compare this product
Characteristics
- Type
- current
- Configuration
- split-core
- Applications
- industrial, for energy meters
- Electrical characteristics
- low-voltage
- Norms
- RoHS
- Other characteristics
- AC, epoxy resin, custom
- Secondary voltage
100 mV, 333 mV
- Primary current
Max.: 5,000 A
Min.: 5 A
- Secondary current
100 mA
- Frequency
Max.: 60 Hz
Min.: 50 Hz
Description
Split Core Type
Easy Installation
CE/ROHS Approved
Electrical Specifications
• Insulation Voltage : 600V AC
• Measurement Range : 20%In~120%In
• Accuracy : Class 0.5/Class 1
• Phase Angle : ＜2° at 50% Rated Current
• Dielectric Strength : 2.5kV/1mA/1min
Mechanical Specifications
• Operating Temperature : -25℃~+75℃
• Operating Humidity : ＜85%
• Case Material : PC/UL94-V0
• Bobbin : PBT
• Core : Permalloy
• Construction : Tie
• Internal Structure : Epoxy
Application Scenario
Our products are widely used in power, energy, industry, construction and many other fields.
