Current transformer CTS-RJ Series
split-coreindustrialfor energy meters

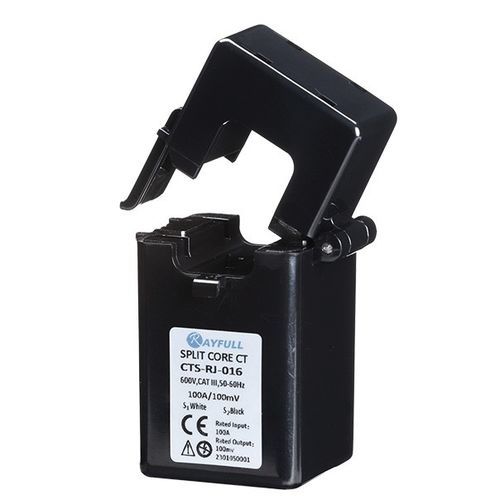

Current transformer - CTS-RJ Series - Rayfull Electric Technology(Zhejiang)Co., Ltd. - split-core / industrial / for energy meters

Current transformer - CTS-RJ Series - Rayfull Electric Technology(Zhejiang)Co., Ltd. - split-core / industrial / for energy meters - image - 2

Current transformer - CTS-RJ Series - Rayfull Electric Technology(Zhejiang)Co., Ltd. - split-core / industrial / for energy meters - image - 3

Current transformer - CTS-RJ Series - Rayfull Electric Technology(Zhejiang)Co., Ltd. - split-core / industrial / for energy meters - image - 4

Add to favorites

Compare this product

Go to the Rayfull Electric Technology(Zhejiang)Co., Ltd. website for more information

Characteristics

Type

current

Configuration

split-core

Applications

industrial, for energy meters

Electrical characteristics

low-voltage

Mounting

opening

Norms

RoHS

Other characteristics

AC, epoxy resin, custom, open type

Secondary voltage

100 mV, 333 mV

Primary current

Min.: 5 A

Max.: 1,200 A

Secondary current

40 mA, 100 mA

Frequency

Min.: 50 Hz

Max.: 60 Hz

Description

Split Core Type RJ12 Terminal Easy Installation CE/ROHS Approved Electrical Specifications • Insulation Voltage : 600V AC • Measurement Range : 20%In~120%In • Accuracy : Class 0.5/Class 1 • Phase Angle : ＜2° at 50% Rated Current • Dielectric Strength : 2.5kV/1mA/1min • Terminal : RJ12 Mechanical Specifications • Operating Temperature : -25℃~+75℃ • Operating Humidity : ＜85% • Case Material : PC/UL94-V0 • Bobbin : PBT • Core : Permalloy • Construction : Tie • Internal Structure : Epoxy Application Scenario Our products are widely used in power, energy, industry, construction and many other fields.
