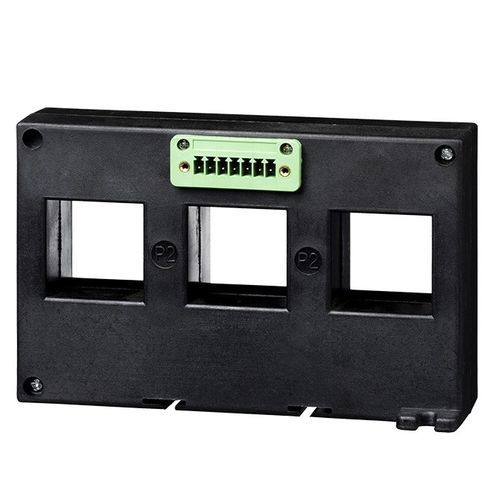

Current transformer CTS-SC Seriesencapsulatedindustrialfor energy meters
Add to favorites
Compare this product
Characteristics
- Type
- current
- Configuration
- encapsulated
- Applications
- industrial, for energy meters
- Electrical characteristics
- low-voltage
- Norms
- RoHS
- Other characteristics
- primary, AC, epoxy resin, custom
- Primary current
Min.: 60 A
Max.: 630 A
- Secondary current
1 A, 5 A
- Frequency
Min.: 50 Hz
Max.: 60 Hz
Description
3-in-1 Solid Type
CE/ROHS Approved
Electrical Specifications
• Insulation Voltage : 720V AC
• Measurement Range : 20%In~120%In
• Accuracy : Class 0.5/Class 1
• Dielectric Strength : 3.0kV/1mA/1min
Mechanical Specifications
• Operating Temperature : -25℃~+75℃
• Operating Humidity : ＜85%
• Case Material : PC/UL94-V0
• Bobbin : PBT
• Core : Permalloy
• Construction : Tie
• Internal Structure : Epoxy
• Terminal : M4 Screw
Application Scenario
Our products are widely used in power, energy, industry, construction and many other fields.
