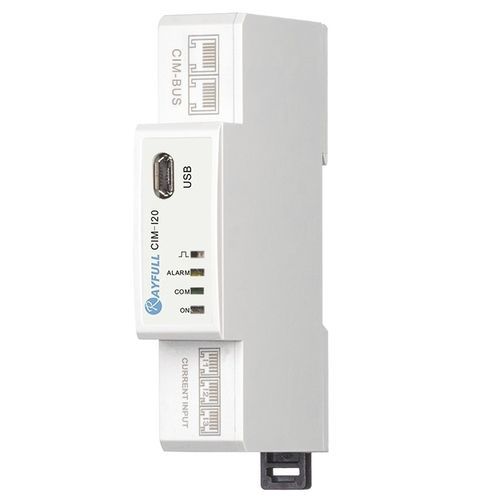

Current measuring module CIM-I20

voltageapparent powerreactive power

CIM-I20, as the current module of Rayfull's CIM solution, it measures the most important parameters, including current, voltage, power, and so on. Besides, it can also measure bi-directional energy parameters, such as import and export active energy, import and export reactive energy. Moreover, it can also read the THD and iHD of current as well as the power demand and Max. Power demand of current. CIM-20, compared with CIM-I10, it has over-current alarm setting, which can be used in security system. RS485 Modbus RTU communication is to help users to read and monitor remotely. Measurement: Voltage/Current/Power/Power Factor/Frequency,...; Bi-directional Energy: Import/Export Active Energy,Import/Export Reactive Energy; Current THD and iHD(2~63); Current Demand/Total Active Power Demand/Total Reactive Power Demand/Total Apparent Power Demand; Max. Demand of Current/Total Active Power/Total Reactive Power/Apparent Power; Over-Current Alarm; RS485 Modbus Communication 1*CIM-I20=1*3P4W Meter / 3*1P2W Meter Electrical Specifications • CT Input : 100mV • Frequency : 45～65 Hz • Overload Capacity : 2xRated Voltage by lasting 1s • IP Class : LCD display: IP51 (Indoor); • Whole meter: IP30 • Installation : TH35-7.5 DIN Rail • Flammability Class : UL 94 V-0 • Utilization Category : UC2 Communication Specifications • Interface and Protocol : 2-Wire RS485; Modbus RTU • Baudrate : 1200, 2400, 4800, 9600(Default), 19200, 38400 bps • Parity : None(Default), Even, Odd • Stop Bit : 1(Default), 2 • Response Time : <100ms Environment Specifications • Operation Temperature : -25 ~ +55℃ • Storage Temperature : -40 ~ +80℃ • Humidity : <90%, no condensing • Pollution Degree : 2
