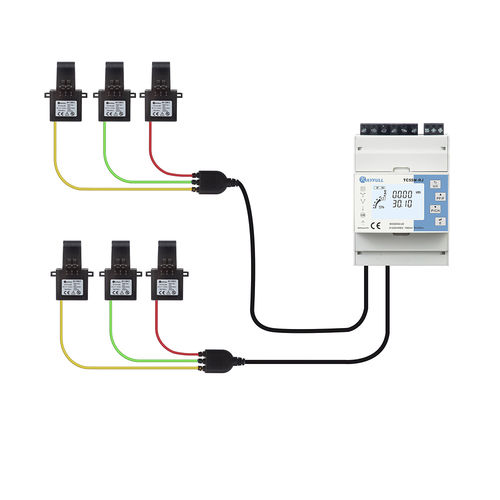

TC55M-RJ series are designed for the collection and analysis of power parameters and the measurement of energy, multi-circuit three-phase transformer connected to the multi-function energy meter series products, which can support 4 three-phase or 12 single-phase power grid system. It can analyze the most important electrical parameters, including voltage, current, four-quadrant power parameters, power factor, total harmonic, and etc. And it can also read a variety of energy parameters, involving bidirectional active and reactive energy, four-quadrant energy, and so on. The series realizes the measurement and analysis of power parameters in various power grid environments, such as 1P2W, 3P3W and 3P4W.
The TC55M-RJ series have RS485 communication interface with highest baudrate 38400bps, supporting Modbus or DLT645 protocol for remote reading.
At the same time, the large-screen LCD and touch buttons help users to view and set various measurement parameters on site.
Password protection function is added to greatly improve the data security.
