Three-phase electric energy meter TC55M-RJ-3 NON-MID

Modbuswith LCD displaymulti-circuit

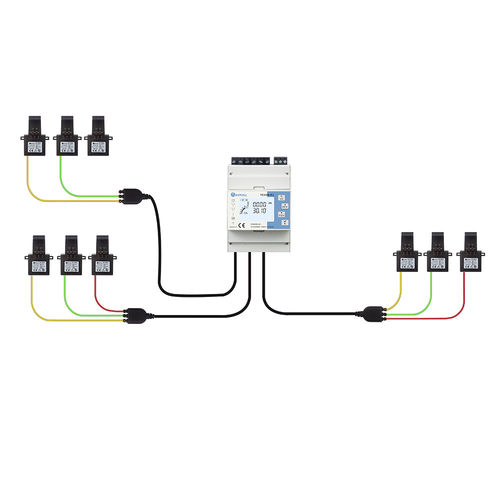

TC55M-RJ-3 NON-MID mV/mA RJ12 Port Current Transformer Input Measurements: V,A,W,Var,kWh,kVarh,PF, THD... Bidirectional Energy and Power Measurement CT Reverse-Connect Correction Pulse Output Multi-circuits (3*RJ12 Ports Input) Communication: RS485 Modbus RTU/DLT645-2007 Networks:1P2W/2P3W/3P3W/3P4W CE/ROHS Approved TC55M-RJ series are designed for the collection and analysis of power parameters and the measurement of energy, multi-circuit three-phase transformer connected to the multi-function energy meter series products, which can support 4 three-phase or 12 single-phase power grid system. It can analyze the most important electrical parameters, including voltage, current, four-quadrant power parameters, power factor, total harmonic, and etc. And it can also read a variety of energy parameters, involving bidirectional active and reactive energy, four-quadrant energy, and so on. The series realizes the measurement and analysis of power parameters in various power grid environments, such as 1P2W, 3P3W and 3P4W. The TC55M-RJ series have RS485 communication interface with highest baudrate 38400bps, supporting Modbus or DLT645 protocol for remote reading. At the same time, the large-screen LCD and touch buttons help users to view and set various measurement parameters on site. Password protection function is added to greatly improve the data security.
