OLED display module REX012832F

colorgraphic128 x 32

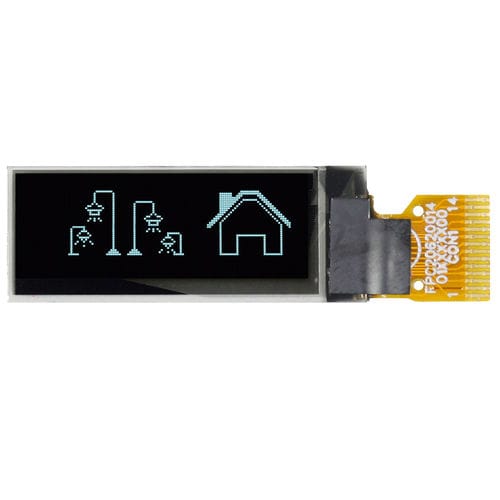

REX012832F series graphic OLED display is a 128x32 OLED display with I2C Interface. It’s a 0.91” micro display with module dimension size 30x11.5 mm, active area size 22.384x5.584 mm. This model 128x32 I2C OLED display has a built-in controller SSD1306 IC and the operating temperature range is from -40°C~+80°C. Structure - COG - Size (Diagonal) - 0.91 - inch Dot Matrix / Resolution - 128 × 32 - dots Module Dimension - 30.0 × 11.5 × 1.26 - mm Viewing Area - 24.384 × 7.584 - mm Active Area - 22.384 × 5.584 - mm Dot / Pixel Size - 0.152 × 0.152 - mm Dot / Pixel Pitch - 0.175 × 0.175 - mm Emitting Color - OLED, White / Yellow / Sky Blue - Display Mode - Passive Matrix - IC - SSD1306 - Interface - I2C - Power Supply - 3V - Duty - 1/32 duty - Operating Temperature - -40~+80 - °C Storage Temperature - -40~+85 - °C Polarizer Type - Polarizer optional - Type - OLED Graphic Display
