Capacitive touch screen display module REP012832A-CTP

OLEDcolorgraphic

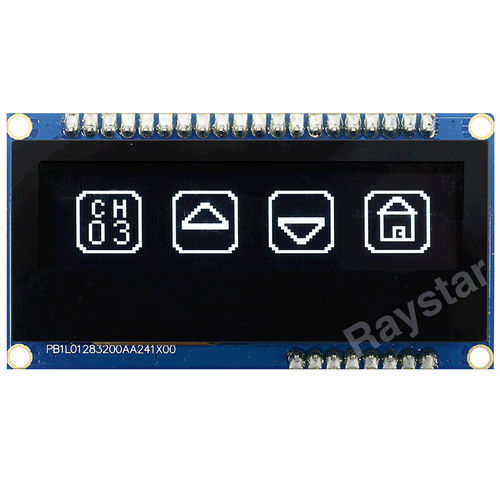

REP012832A-CTP is a dot matrix 128x32 COG graphic OLED display module with PCB & capacitive touch panel. The glossy touch screen has built-in IC FT6336U which supports 1-point touch detection. The size of the active area is 2.23” diagonal with module dimension 66.5x35.0mm. This 2.23 inches OLED module has built-in IC SSD1305, and boasts high contrast ratio 10,000 : 1. There are many interface options to choose from, including 6800, 8080, 4-Wire SPI, I2C interface. Logic supply voltage ranges from 3.2V-3.5V, the typical value is 3.3V. The available emitting colors are white, yellow and blue. There are two mounting methods of this module, one is using pin header; the other is fixing it with screw holes. Besides, we provide 3 interfaces of connection for customers to choose from: PIN, FPC (need an extra connector), and Hot Bar. On top of that, we also provide small vibrating motor and buzzer as optional add-on accessories. This 2.23 inches graphic OLED module is a good fit for smart home application, smart control system, medical equipment, etc. Structure - COG+FR+PCB - Size (Diagonal) - 2.23 - inch Dot Matrix / Resolution - 128 × 32 - dots Module Dimension - 66.5 × 35.0 × 10.55 (Max) - mm Viewing Area - 56.02 × 14.1 - mm Active Area - 55.018 × 13.098 - mm Dot / Pixel Size - 0.408 × 0.388 - mm Dot / Pixel Pitch - 0.43 × 0.41 - mm Emitting Color - White, Yellow, Blue - Display Mode - Passive Matrix - IC - SSD1305 - Interface - 6800, 8080, 4-Wire SPI, I2C - PCAP IC - FT6336U - PCAP Interface - I2C - Detect Points - 1 - Points Touch Panel - Capacitive Touch Panel - Surface - Normal Glare - Power Supply - 3V - Duty - 1/32 duty
