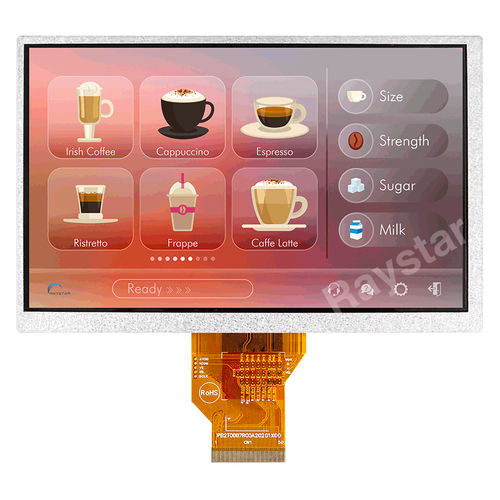

LED display module RFF700A2-AZH-DNNTFT LCDcolordot-matrix
Add to favorites
Compare this product
Characteristics
- Screen type
- LED, TFT LCD
- Type
- color, dot-matrix
- Format
- 800 x 480
- Screen size
- 7"
- Applications
- control
- Interface
- RGB
Description
Size (Diagonal) - 7 - inch
Dot Matrix / Resolution - 800 × RGB × 480 (TFT) - dots
Module Dimension - 165.0 × 100 × 5.75 - mm
Viewing Area - 157 × 90.1 - mm
Active Area - 154.08 × 85.92 - mm
Dot / Pixel Pitch - 0.1926 × 0.179 - mm
LCD Type - TFT, Normally White, Transmissive -
View Direction - 12 o’clock -
Gray Scale Inversion Direction - 6 o’clock -
Aspect Ratio - 16:9 -
Backlight Type - LED, Normally White -
Control Board - No -
TFT Driver IC - Source IC: ST-5623D, Gate IC: ST5091D -
Interface - RGB -
Color arrangement - RGB-STRIPE -
Touch Panel - Without Touch Panel -
Surface - Anti-Glare -
Brightness - 750 - cd/㎡
O-Film - Yes -
Mounting Hole - No -
Operating Temperature - -20~+70 - °C
Storage Temperature - -30~+80 - °C
TFT Series - Standard TFT LCD Display
