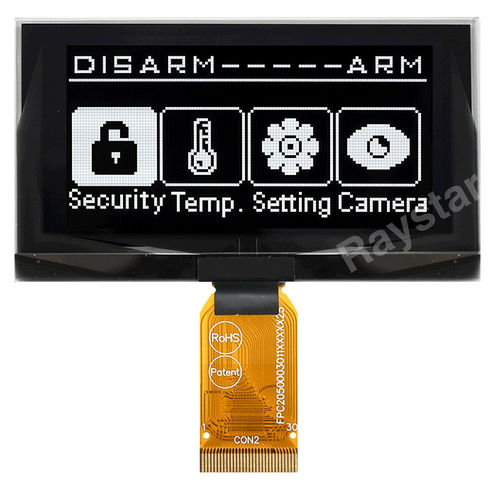

OLED display module REX012864U

colorgraphicmonochrome

This is a Graphic OLED with resolution of 128x64 dots, diagonal size 2.7 inch, and built-in SSD1357 controller. There are 2 emitting colors (White / Yellow) available for this 12864 OLED module and it also features grayscale. REX012864U monochrome OLED 12864 supports 8-bits 6800 and 8080 parallel, 4-line SPI, I2C interface. Structure - COG; Frame Option - Size (Diagonal) - 2.7 - inch Dot Matrix / Resolution - 128 × 64 - dots Module Dimension - 73.0 × 41.86 × 2.01 - mm Viewing Area - 63.41 × 32.69 - mm Active Area - 61.41 × 30.69 - mm Dot / Pixel Size - 0.45 × 0.45 - mm Dot / Pixel Pitch - 0.48 × 0.48 - mm Emitting Color - OLED, White / Yellow - Support Grayscale - Yes - Display Mode - Passive Matrix - IC - SSD1357 - Interface - 8-bits 6800 and 8080 parallel, 4-line SPI, I2C - Power Supply - 3V - Duty - 1/64 duty - Operating Temperature - -40~+80 - °C Storage Temperature - -40~+85 - °C Polarizer Type - Polarizer optional - Type - OLED Graphic Display
