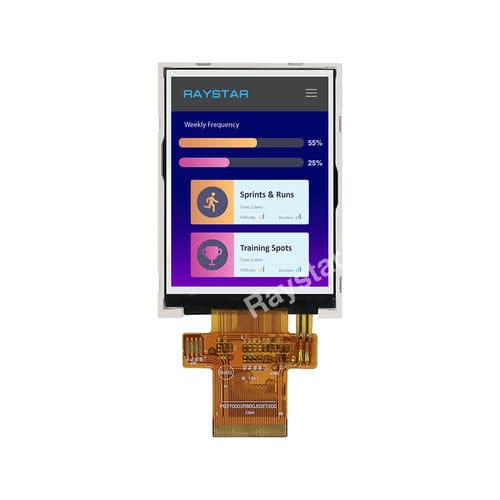

LED display module RFJ280J-AYW-DNN

TFT LCDIPS240 x 320

RFJ280G-ALW-DNN is a 2.8-inch, IPS, active matrix TFT-LCD module with aspect ratio 3:4. The module features wide viewing angle thanks to the IPS panel which is one of the most popular techniques on the market now. This 2.8-inch TFT module adopts driver IC ILI9341V supporting MCU/SPI interface. The brightness is 800 cd/m2 with contrast ratio 500:1. Operating temperature covers from -20~+70℃, storage temperature range is from -30~+80℃. This design is a good fit for industrial application, medical equipment, home appliances, etc. Size (Diagonal) - 2.8 - inch Dot Matrix / Resolution - 240 × RGB × 320 (TFT) - dots Module Dimension - 50.5(W) × 69.7(H) × 4.55(D) - mm Viewing Area - 44.2 × 58.6 - mm Active Area - 43.2 × 57.6 - mm Dot / Pixel Pitch - 0.18 × 0.18 - mm LCD Type - TFT, Normally Black, Transmissive - View Direction - IPS - Viewing Angle - 80/80/80/80 - Aspect Ratio - 3:4 - Backlight Type - LED, Normally White - Control Board - No - TFT Driver IC - ILI9341V or equivalent - Interface - MCU/SPI - Touch Panel - Without Touch Panel - Surface - Glare - Brightness - 500 - cd/㎡ Mounting Hole - No - Operating Temperature - -20~+70 - °C Storage Temperature - -30~+80 - °C TFT Series - Standard TFT, IPS TFT LCD
