Color display module REX009632B

graphicdot-matrixOLED

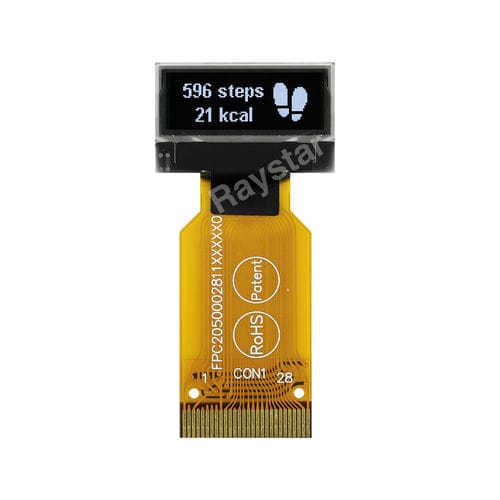

REX009632B is a dot matrix 96x32 graphic type OLED module. The size is small—only 0.68” diagonal with module dimension 19.8x12.32mm. This 96x32 OLED module has built-in IC SSD1305, and boasts high contrast ratio 10,000 : 1. There are many interface options to choose from, including 8-bits 6800/8080 parallel interface, 4-line SPI, and I2C serial interface. Logic supply voltage ranges from 2.8V-3.3V, the typical value is 3V. This series offers different types of FPC such as ZIF and Hotbar FPC. The available emitting colors are white and yellow. Structure - COG - Size (Diagonal) - 0.68 - inch Dot Matrix / Resolution - 96 × 32 - dots Module Dimension - 19.80 × 12.32 × 1.21 - mm Viewing Area - 17.298 × 6.418 - mm Active Area - 16.298 × 5.418 - mm Dot / Pixel Size - 0.148 × 0.148 - mm Dot / Pixel Pitch - 0.17 × 0.17 - mm Emitting Color - OLED, White / Yellow - Display Mode - Passive Matrix - IC - SSD1305 - Interface - 8-bits 6800, 8-bits 8080, 4-line SPI, I2C - Power Supply - 3V - Duty - 1/32 Duty - Operating Temperature - -40~+80 - °C Storage Temperature - -40~+85 - °C FPC Options - Yes - Type - OLED Graphic Display
