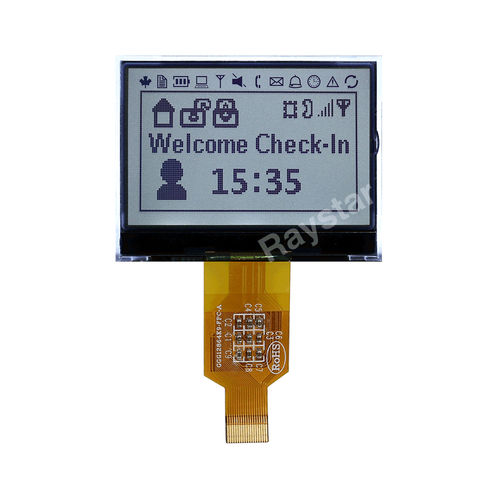

LED display module RX12864U

LCDgraphicmonochrome

RX12864U is a 128x64 graphic monochrome COG LCD display with backlight. Module dimension is 58.2×44.7 mm; active area is 47.76×30.29 mm. There’s a built-in controller IC ST7565P supporting 8080, 6800 and SPI interfaces. Logic power supply ranges from 3.0V-3.3V. Operating temperature is between -20°C to +70°C; storage temperature covers from -30°C to +80°C. Feel free to contact us for various combinations of LED backlight and LCD colors. Structure - COG - Dot Matrix / Resolution - 128 × 64 - dots Module Dimension - 58.2 × 44.7 × 3.9 - mm Viewing Area - 52.0 × 33.5 - mm Active Area - 47.76 × 30.29 - mm Dot / Pixel Size - 0.40 × 0.35 - mm Dot / Pixel Pitch - 0.42 × 0.37 - mm Backlight Type - LED - IC - ST7565P - Interface - 6800 / 8080 / SPI - Power Supply - 3.3V - Duty - 1/64 Duty ; 1/9 Bias - Type - Graphic LCD Display
