LED display module RFH700A8-AYW-MNN

TFT LCDIPScolor

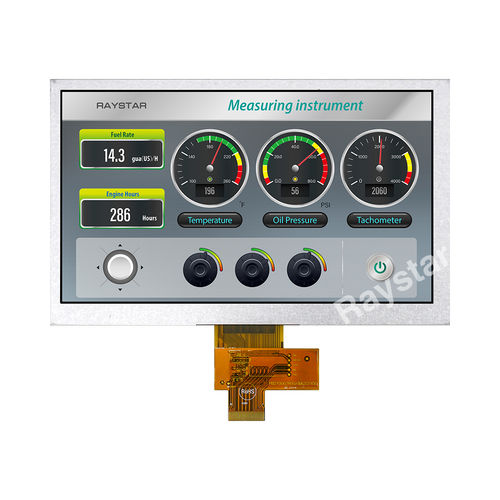

RFH700A8-AYW-MNN is a 7" IPS TFT LCD display module. Its resolution is 1024x600 pixels with aspect ratio 16:9. The module features wide viewing angle and great color performance thanks to IPS panel technology. This TFT module adopts driver IC EK79007AD3 + EK73217BCGA supporting 4-Lanes MIPI interface and contrast ratio 800:1, and brightness 600 cd/m2 (typical value). With the help of anti-glare display surface, the screen doesn’t reflect light and preserves better image quality. Operating temperature covers from -20~+70℃, storage temperature range is from -30~+80℃. This design is a good fit for industrial application, test equipment, etc. Size (Diagonal) - 7 - inch Dot Matrix / Resolution - 1024 × RGB × 600(TFT) - dots Module Dimension - 169.9(W) × 103.4(H) × 5.6(D) - mm Viewing Area - 157.2 × 89.43 - mm Active Area - 154.2144 × 85.92 - mm Dot / Pixel Pitch - 0.1506 × 0.1432 - mm LCD Type - TFT, Normally Black, Transmissive - Viewing Angle - 85/85/85/85(IPS) - Aspect Ratio - 16:9 - Backlight Type - LED, Normally White - Control Board - No - TFT Driver IC - EK79007AD3 + EK73217BCGA or equivalent - Interface - 4-Lanes MIPI - Touch Panel - Without Touch Panel - Surface - Anti-Glare - Brightness - 600 - cd/㎡ O-Film - No - Mounting Hole - No - Operating Temperature - -20~+70 - °C Storage Temperature - -30~+80 - °C TFT Series - IPS TFT LCD
