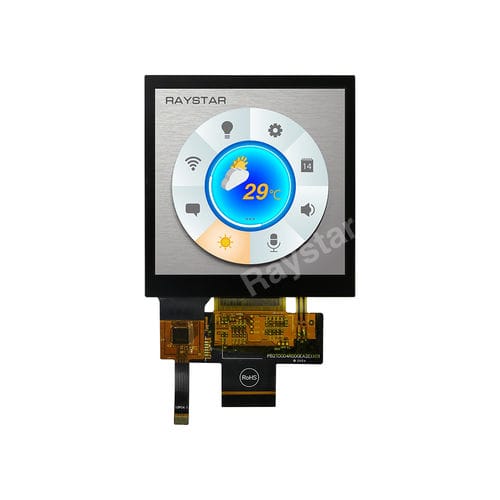

LED display module RFA6400E-AWH-DNG

TFT LCDIPScapacitive touch screen

RFA6400E-AWH-DNG is a 480x480 pixels, 4-inch diagonal, 1:1 aspect ratio square TFT LCD display. This TFT LCD 4-inch has wider viewing angle due to its IPS panel, and features high brightness (800 cd/m2) which allows viewers to see clear and sharp image & video in daylight or very bright conditions. It adopts driver IC ST7701S supporting 24-bit RGB interface. The monitor also comes with a projected capacitive touch screen (PCAP). The PCAP touchscreen has a built-in IC ST1633I which enables 5-points touch, supports I2C interface; if you’d like to have module with no touch, the part number is RFA6400E-AWH-DNN. This TFT module also features wide temperature, operating and storage temperatures both range from -30~+80°C. Due to its advantages of high brightness, wider viewing angle and wide temperature ranges, this TFT LCD is a good fit for applications such as handheld testing devices, medical equipment, smart home appliances, etc. Module Dimension - 78.8(H) × 82.95 (W) × 7.17 - mm Viewing Area - 72.46 × 70.78 - mm Active Area - 71.856(H) × 70.176 (V) - mm Dot / Pixel Pitch - 0.1497(H) × 0.1462(V) - mm LCD Type - TFT, Normally Black, Transmissive - View Direction - 80/80/80/80 (IPS) - Aspect Ratio - 1:1 - Backlight Type - LED, Normally White - Control Board - No - TFT Driver IC - ST7701S or Equivalent - Interface - 24-bit RGB - PCAP FW Version - V01 - PCAP IC - ST1633I or Equivalent - PCAP Interface - I2C - Detect Points - 5 - Points Touch Panel - Projected Capacitive Touch Screen, PCAP - Surface - Anti-Glare - Brightness - 800 - cd/㎡ O-Film - No - Mounting Hole - No - Operating Temperature - -30~+80 - °C Storage Temperature - -30~+80 - °C
