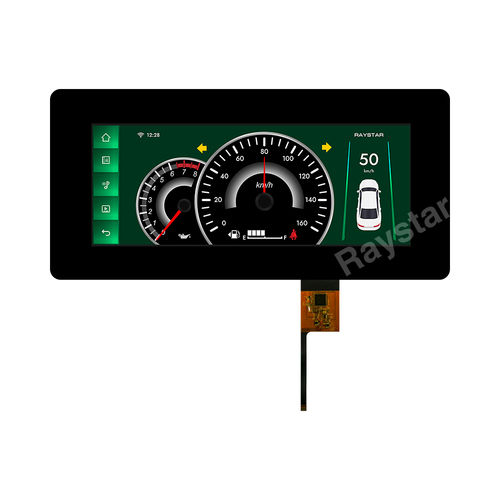

LED display module RFY1230B-AWH-LNB

TFT LCDIPScapacitive touch screen

RFY1230B-AWH-LNB is a TFT LCD display with IPS (In-Plane-Switching Liquid Crystal) panel; IPS technique allows viewers to view the screen from wider angles (85/85/85/85 degree). This 12.3-inch TFT display features high brightness (650 cd/m2) and 2ch-LVDS interface. PCAP touchscreen of this module enables 10-piont multi-touch, and has built-in IC ILI2511 supporting USB and I2C interfaces. RFY1230B-AWH-LNB TFT LCD module works within wide temperature range from -30 to +85℃, storage temperature covers from -40 to +85℃. Module Dimension - 364.0(H) × 175.0 (V) x 10.48 - mm Viewing Area - 293.32(H) × 110.62(V) - mm Active Area - 292.032(H) × 109.512(V) - mm Dot / Pixel Pitch - 0.1521(H) × 0.1521 (V) - mm LCD Type - TFT, Normally Black, Transmissive - View Direction - 85/85/85/85 (IPS) - Backlight Type - LED, Normally White - Control Board - No - Interface - 2ch-LVDS - PCAP FW Version - V6.0.0.0.0.0.0.3 - PCAP IC - ILI2511 or equivalent - PCAP Interface - USB (I2C available) - Detect Points - 10 - Points Touch Panel - Projected Capacitive Touch Screen, PCAP - Surface - Glare - Brightness - 650 - cd/㎡ O-Film - No - Mounting Hole - No - Operating Temperature - -30~+85 - °C Storage Temperature - -40~+85
