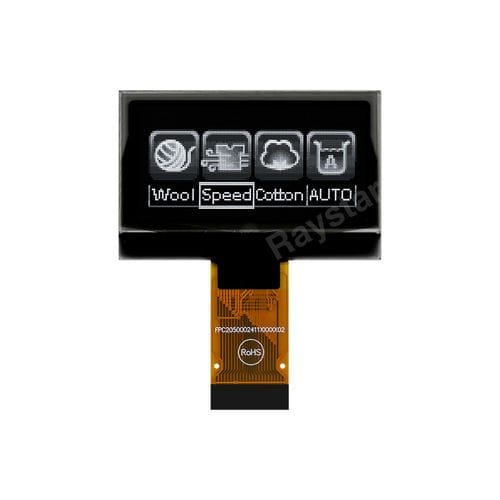

OLED display module REX012864AA

colorgraphic128 x 64

This is a Graphic OLED with resolution of 128x64 dots, diagonal size 1.54 inch, and built-in SSD1327 controller. There are 2 emitting colors (White / Yellow) available for this OLED module and it also features grayscale. REX012864AA OLED display supports 6800 and 8080 parallel, 4-wire SPI, I2C interface. Our OLED boasts high contrast ratio 10,000:1 making the visual performance stand out from traditional displays. Logic supply voltage ranges from 1.65V-3.5V, the typical value is 3V. The module works within temperature from -40℃ to +80℃; Storage temperature range is -40℃ to +85℃. Structure - COG - Size (Diagonal) - 1.54 - inch Dot Matrix / Resolution - 128 × 64 - dots Module Dimension - 42.04 × 27.22 × 1.41 - mm Viewing Area - 37.05 × 19.51 - mm Active Area - 35.05 × 17.51 - mm Dot / Pixel Size - 0.249 × 0.249 - mm Dot / Pixel Pitch - 0.274 × 0.274 - mm Emitting Color - OLED, White / Yellow - Support Grayscale - Yes - Display Mode - Passive Matrix - IC - SSD1327 - Interface - 6800,8080,4-Wire SPI,I2C - Power Supply - 3V - Duty - 1/64 duty - Operating Temperature - -40~+80 - °C Storage Temperature - -40~+85 - °C Polarizer Type - Polarizer optional - Type - OLED Graphic Display
