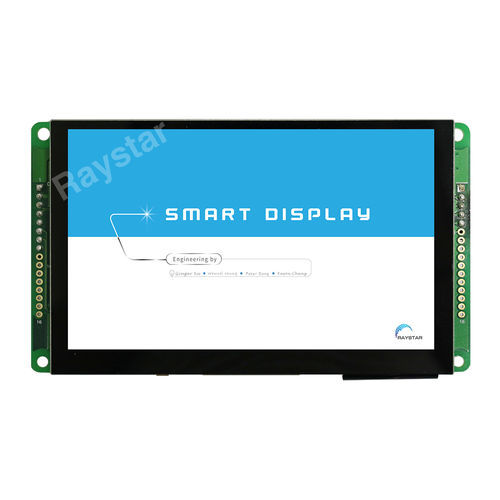

LCD module RL0F00050000FGAAASA01

TFTIPSdot-matrix

★5 Inch CAN Open Smart Display Features: 1.DC 5V working voltage, low power consumption for USB to drive. 2.Self testing after booting function. 3.CAN bus communication interface. 4.Support CANopen negotiation. Default baud rate is 250KB. 5.Built in flash memory, store the font and Object Dictionary Data. 6.Support capacitive touch panel (CTP). 7.Smart Display scenario is slave device display and action from Master Device instruction. 8.Embedded buzzer controlled by Master Device. 9.Demo set HOST can be used on multiple platforms, such as Computer (with USB to CAN Dongle), MCU, Raspberry Pi (with PiCAN2). Module Dimension - 135.7(W) × 82.4(H) × 12.15 - mm Active Area - 108(W) × 64.8 (H) - mm Dot / Pixel Pitch - 0.135(W) × 0.135(H) - mm LCD Type - TFT, Normally Black, Transmissive - View Direction - 80/80/80/80 (IPS) - Aspect Ratio - 5:3 - Interface (System) - CAN bus differential ± 3.3 - Protocol - CAN open - MCU - STM32F750 - Touch Panel - Projected Capacitive Touch Screen, PCAP - Surface - Glare - Brightness - 750 - cd/㎡ Operating voltage - 5 - Vdc Flash Memory Size - 16 - MB SDRAM Frequency - 108 - Mhz Operating Temperature - -30~+80 - °C Application - Industrial, Vehicle, Medical
