LED display module RFF700A2-AIH-DNL

TFT LCDcapacitive touch screencolor

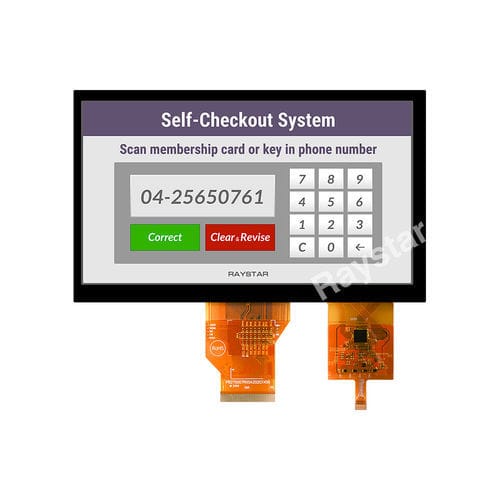

RFF700A2-AIH-DNL is a 7-inch TFT display module with hover touch screen, resolution 800x480 pixels. Built-in ST-5623D driver IC support 24 bit RGB interface. The contrast ratio of the module is 800:1 (typical value), the brightness is 700 nits (typical value), and the aspect ratio is 16:9. The PCAP touchscreen has a built-in IC MXT874U which enables 5-points touch, supports I2C interface. Supply voltage for logic ranges from 3V-3.6V, typical value is 3.3V. It works within temperature range from -20 to +70℃, storage temperature ranges from -30 to +80℃. Module Dimension - 165 × 100.0 × 8.15 - mm Viewing Area - 155.22 × 87.19 - mm Active Area - 154.08 × 85.92 - mm Dot / Pixel Pitch - 0.1926 × 0.179 - mm LCD Type - TFT, Normally White, Transmissive - View Direction - 12 o’clock - Gray Scale Inversion Direction - 6 o’clock - Aspect Ratio - 16:9 - Backlight Type - LED, Normally White - Control Board - No - TFT Driver IC - Source IC: ST-5623D, Gate IC: ST5091D - Interface - 24-bit RGB - PCAP Active Area - 145.22*77.19(Lens va One-sided retraction 5mm) - mm PCAP FW Version - 0x8CAB7A - PCAP IC - MXT874U - PCAP Interface - I2C - PCAP Resolution - 800*480 - Detect Points - 5 - Points Color arrangement - RGB-STRIPE - Touch Panel - Projected Capacitive Touch Screen, PCAP - Surface - Glare - Brightness - 700 - cd/㎡ Mounting Hole - No - Operating Temperature - -20~+70 - °C Storage Temperature - -30~+80
