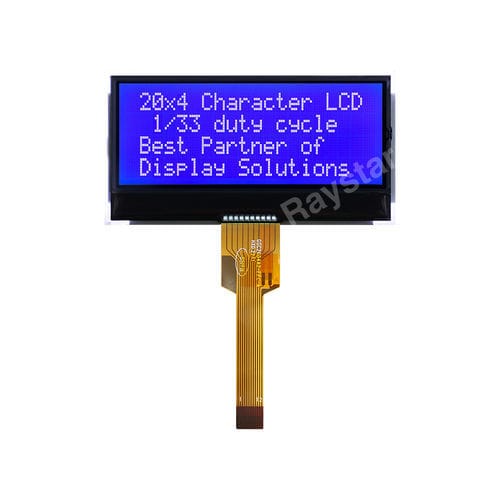

LCD module RX2004C

20 x 44-lineinterface

RX2004C is a character 20x4 COG LCD display with FPC. The module dimension is 74.3×36.4 mm; viewing area 60.5×22.18 mm. This LCD module built-in IC IST3602 supporting I2C interface. Power supply of RX2004C LCD display module 20x4 is 3V. The module works within wide temperature range from-20 to +70℃, Storage Temperature covers from-30 to +80℃. Structure - COG - Characters × Lines - 20 Characters × 4 Lines - Module Dimension - 74.3 × 36.4 × 6.0 - mm Viewing Area - 60.5 × 22.18 - mm Active Area - 58.5 × 20.18 - mm Dot / Pixel Size - 0.45 × 0.54 - mm Dot / Pixel Pitch - 0.50 × 0.59 - mm Character Size - 2.45 × 4.67 - mm Character Pitch - 2.95 × 5.17 - mm IC - IST3602 - Interface - I2C - Power Supply - 3V - Duty - 1/33DUTY,1/6BIAS - Type - Character LCD Display
