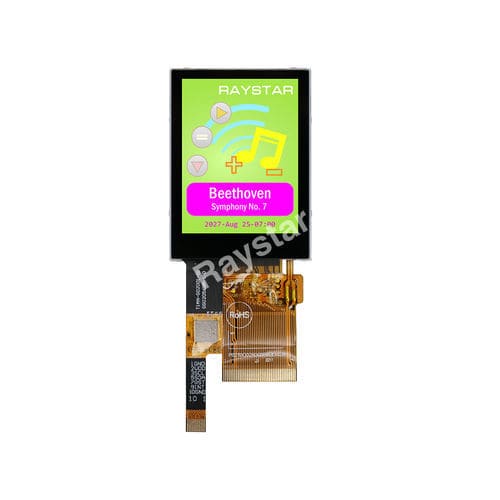

LED display module RFJ02000B-AYW-DNG1

TFT LCDIPScapacitive touch screen

RFJ02000B-AYW-DNG1 is a 2-inch, IPS TFT LCD module with capacitive touch screen. The module dimension is 38.8x52.3 mm; active area 30.6x40.8 mm. Its resolution is 240x320 pixels and 3:4 aspect ratio. The module comes with PCAP touch panel with IC GT911 supporting I2C interface and 1-point touch. The module features wide viewing angle thanks to the IPS panel which is one of the most popular techniques on the market now, and viewing angle 80/80/80/80 degree. This 2-inch TFT LCD display module use ST7789VI driver IC supporting MCU and SPI Interface. The brightness is 400 cd/m2 with contrast ratio 800:1. Supply voltage for analog ranges from 2.4V-3.6V (typical value 3.3V). The module works within wide temperature range from-20 to +70℃，Storage Temperature covers from-30 to +80℃. Module Dimension - 38.8(W) × 52.3(H) × 3.8(D) - mm Viewing Area - 31.60 × 41.80 - mm Active Area - 30.60 × 40.80 - mm Dot / Pixel Pitch - 0.1275 × 0.1275 - mm LCD Type - TFT, Normally Black, Transmissive - View Direction - 80/80/80/80 (IPS) - Aspect Ratio - 3:4 - Backlight Type - LED, Normally White - Control Board - No - TFT Driver IC - ST7789VI or Equivalent - Interface - MCU / SPI - PCAP FW Version - V92 - PCAP IC - GT911 or equivalent - PCAP Interface - I2C - PCAP Resolution - 240 * 320 - Detect Points - 1 - Points Touch Panel - Projected Capacitive Touch Screen, PCAP - Surface - Glare - Brightness - 400 - cd/㎡ Mounting Hole - No - Operating Temperature - -20~+70 - °C Storage Temperature - -30~+80
