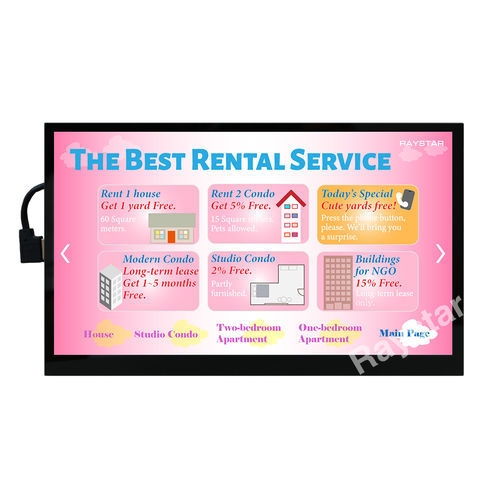

LED display module RFH101VJ-1YH-LHB

TFT LCDIPScapacitive touch screen

RFH101VJ-1YH-LHB is a 10.1-inch, IPS TFT LCD display module and 16:9 aspect ratio. Its resolution is 1024×600 pixels, color active matrix TFT LCD display with IPS panel. IPS technique allows viewers to view the screen from wider angles (85/85/85/85 degree). This TFT display module uses EK79001HN and EK73215BCGA driver IC, supporting HDMI connector (only DVI signal). The PCAP touchscreen (USB interface) adopts IC ILI2511 which enables 1-point/2-point/multiple-point touch. The brightness is 850 cd/m2 with contrast ratio 800:1. LCM voltage ranges from 4.7V-5.5V, typical value is 5V. Operating temperature covers from -20~+70℃, storage temperature range is from -30~+80℃. Module Dimension - 235(W) × 143(H) × 27.96(MAX)(D) - mm Viewing Area - 223.72 (H) × 126.28(V) - mm Active Area - 222.72 (H) × 125.28(V) - mm Dot / Pixel Pitch - 0.2175(W) × 0.2088(H) - mm Display Mode - Normally Black , Transmissive - Viewing Angle - 85/85/85/85 (IPS) - Pixel Arrangement (Pixel Configuration) - RGB-STRIPE - Aspect Ratio - 16:9 - Backlight Type - LED, Normally White - Control Board - Yes - Built-in Controller - TFP401 - TFT Driver IC - EK79001HN + EK73215BCGA or equivalent - Interface - Support HDMI Connector (Only DVI Signal) - PCAP FW Version - V6.0.0.0.62.90.1.2 - PCAP IC - ILI2511 or equivalent - PCAP Interface - USB - Detect Points - 1 / 2 / Option - Points Touch Panel - Projected Capacitive Touchscreen, PCAP - Surface - Glare - Brightness - 850 - cd/㎡ Operating Temperature - -20~+70 - °C Storage Temperature - -30~+80
