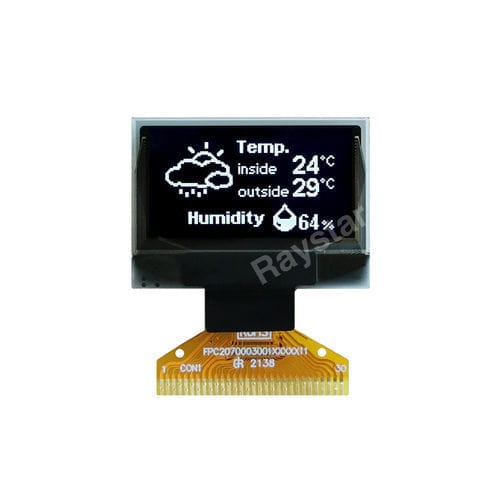

Color display module REX012864AD

graphicOLED128 x 64

REX012864AD is a dot matrix 128x64 COG graphic type OLED module. The size of the active area is 0.96” diagonal with module dimension 26.7×19.26 mm. This 0.96 inches OLED module has built-in IC ST7315, and boasts high contrast ratio 10,000 : 1. The REX012864AD OLED Display available interfaces to choose 6800, 8080, SPI, and I2C. The variety of interface options makes these OLED modules adaptable to any project or application. Logic supply voltage ranges from 2.4V-5.0V, the typical value is 3V. The module works within temperature from -40~80°C; storage temperature range is -40~+85°C. The available emitting color is white. Structure - COG - Size (Diagonal) - 0.96 - inch Dot Matrix / Resolution - 128 × 64 - dots Module Dimension - 26.7 × 19.26 × 1.26 - mm Viewing Area - 23.94 × 12.06 - mm Active Area - 21.74 × 10.86 - mm Dot / Pixel Size - 0.15 × 0.15 - mm Dot / Pixel Pitch - 0.17 × 0.17 - mm Emitting Color - OLED, White - Support Grayscale - No - Display Mode - Passive Matrix - IC - ST7315 - Interface - 8080 / 6800 / SPI / I2C - Power Supply - 3V - Duty - 1/64 - Operating Temperature - -40~+80 - °C Storage Temperature - -40~+85 - °C Polarizer Type - Polarizer optional - Type - OLED Graphic Display
