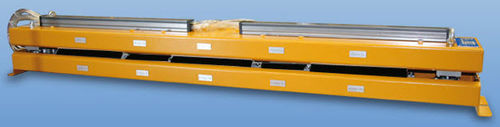

Oil lubrication unit SBA TB-10

brush rollerstripblank

The sector lubrication system consists of an upper and a lower part with an oil pan. The upper and lower section each contains 5 spring-mounted lubricating sectors with low-wear brush rollers. The upper part of the sector lubrication system can be adjusted pneumatically over a stroke height of 25 mm. The contact between the lubricating rollers and the coil material allows the forming lubricant to be applied oil mist-free. The lubricant supply comes from the inside via fixed hollow shafts. It is possible to supply each sector individually with lubricant so that only a selected area of the coil material is lubricated.
