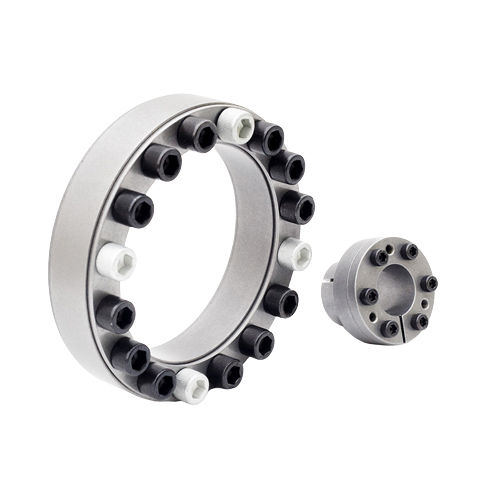

Locking device coupling REACH®

transmissionfor shaftszero-backlash

Traditional shaft-hub connections are unsatisfactory in many applications, mainly where frequent start-stop rotations are involved. Over time, keyway engagement becomes less accurate due to mechanical wear. The locking assembly produced by REACH bridges the gap between the shaft and the hub and distributes the power transmission over the entire surface, while with the key connection, the transmission is only concentrated in a limited area. Keyless locking devices, also known as locking assemblies or keyless bushings, achieves non-keyed connection between a machine part and a shaft by generating a huge clamping force between the inner ring and the shaft, and between the outer ring and the hub through the action of high-strength tensile bolts. The resulting zero backlash mechanical interference fit is suitable for high torque, thrust, bending, and/or radial loads, and unlike other installation techniques, it does not wear or impact even under high cyclic fluctuations or reverse loads. Features Easy assembly and disassembly Overload protection Easy adjustment Precision location High axial and angular positioning accuracy Ideal for applications involving acceleration and deceleration Zero backlash
