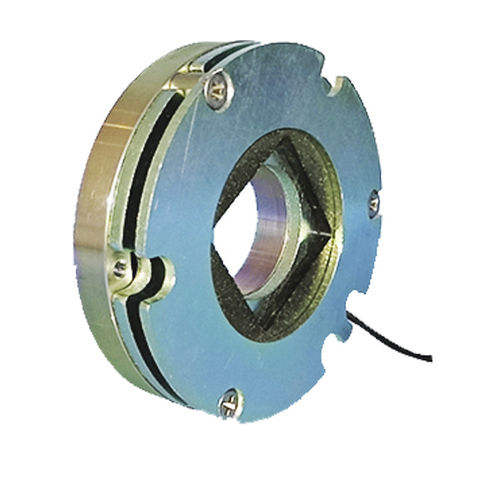

Friction brake REB series

discelectromagneticDC voltage

REACH servo brake is a single-piece brake with two friction surfaces. When the electromagnetic coil is energized, the brake is released and the connected shaft is free to rotate. When powered off, the brake is applied and the connected shaft stops rotating. When a electromagnetic coil is powered by DC voltage, a magnetic field is created. The magnetic force pulls the armature through a small air gap and compresses several springs built into the magnet body. When the armature is pressed against the surface of the magnet, the friction pad attached to the hub is free to rotate. As power is removed from the magnet, the springs push against the armature. The friction liner is then clamped between the armature and the other friction surface and generates a braking torque. The spline stops rotating, and since the shaft hub is connected to the friction lining by a spline, the shaft also stops rotating Features Designed to maintain braking function and withstand emergency braking: Afford certain times of emergency braking. Small size with high torque: Our product uses advanced electromagnetic technology and spring-loaded design, making it compact yet powerful, suitable for high-performance applications, while also saving space. Uses high-wear-resistant friction disc with a long service life: Our product uses high-wear-resistant friction disc, which have strong wear resistance and a long service life, reducing equipment maintenance costs.
