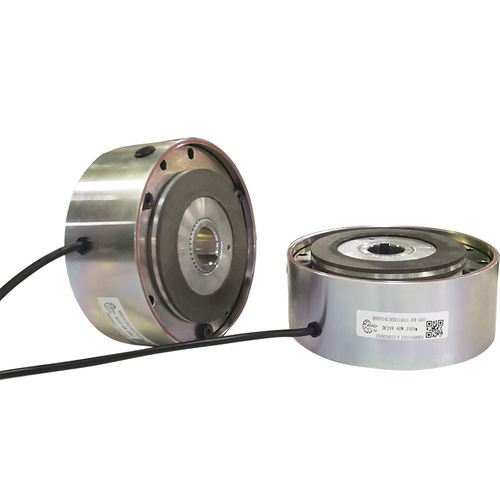

Friction brake REB 05C series

springelectromagneticDC voltage

REACH 05C series brake is mainly used for wind power. This electromagnetic brake is electrically powered and specifically designed to stop mechanically and hold torque. Electromagnetic brake uses the electromagnetic field generated by the internal stator coils. Depending on the type and design, electromagnetic fields can engage or disengage mechanical parts. REACH is a manufacturer of premium brakes used in a range of high performance applications in various motion control industries worldwide. With over twenty years of experience, our designs have been tested and refined to provide unsurpassed quality and reliability. Working Principle The motor shaft is connected to a square hub (spline hub). When power off, the electromagnetic coil has no power , the force generated by the spring acts on the armature to clamp the rotor, which is rotating through the square hub (spline hub), tightly between the armature and the cover plate, thus generating a braking torque. At this point, An air gap is created between the armature and the stator. When the brake needs to be relaxed, the electromagnetic coil is connected to DC voltage, and the magnetic field generated attracts the armature to move toward the stator, and the armature compresses the spring when it moves, at which time the rotor is released and the brake is released. Product Features Rated voltage of Brake (VDC): 24V,45V,96V,103V,170, 180V,190V,205V. Cost-effective, compact structure and Easy mounting Fully sealed structure and good lead packaging, with good waterproof and dustproof performance. Ambient Temperature: -40℃~50℃
