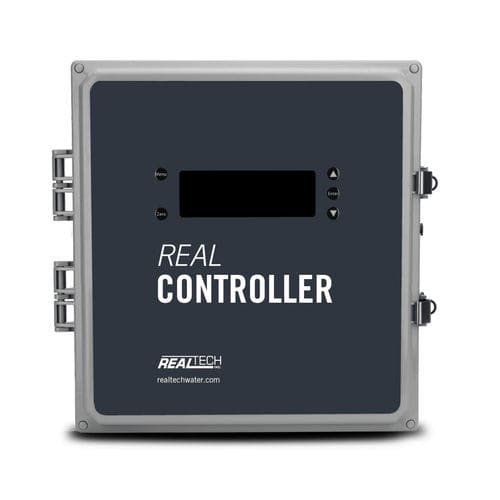

The plug and play Real Controller provides a simplified version of the Real Controller Pro. Featuring a character LCD display, hierarchical menu system and correlation software. A single Real Tech sensor or multiple sensors and peripheral accessory devices can easily be controlled and configured from one location. Modbus (RS485) and 4-20mA output standard. 4-20 mA input, Dry contacts, WIFI module and cellular modem optional.
FEATURES & BENEFITS
Simple to operate and control
4 line x 20 character backlit LCD
Comprehensive hierarchical menu system
Multiple sensor and accessories integration
Modbus (RS485) and 4-20mA output standard
• Optional WiFi, additional 4-20 mA, cell modem
CHARACTERISTIC - TECHNICAL DATA
Model # - S-169000
Compatibility - All sensors except Spectrum sensor - PL series
Display - 4 line x 20 character backlit LCD with LED indicator
Operator Interface - Five push buttons to control a comprehensive hierarchical menu system
Inputs - Proprietary inputs for Real Tech sensors and accessories.
Optional 4-20mA inputs for plug and play sensors, dry contact inputs.
Alarms - Display of sensor specific alarms
Communication - Modbus (RS485), 4-20mA output standard.
Additional 4-20mA input and output, Digital I/O expansions cell modem and WiFi optional.
Data Logging - Onboard. 6 month nominal (configuration dependent). Optional remote data logging. Export data via USB
Electrical - 24VDC 13.4A power adapter (accepts 90-250VAC 50/60Hz)
Enclosure - NEMA 4, wall mountable
Dimensions - 10.25”H x 10.25”W x 5.5”D
Operating Temp - 0 to 45°C (32 to 113°F)
Storage Temp - -20 to 60°C (-4 to 140°F)
