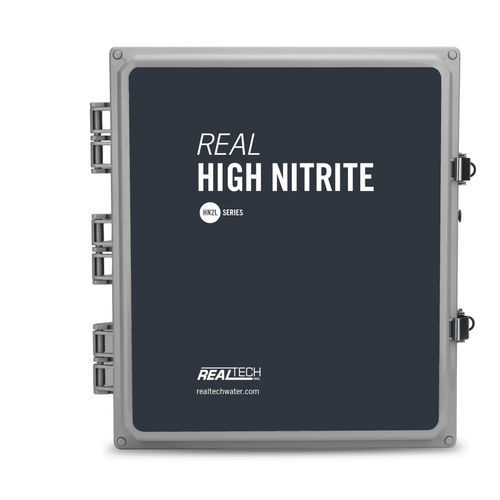

Nitrite analyzer HN2L series

waterwastewaterLED

Real Tech’s bypass High Nitrite sensor provides affordable real-time measurement of high concentrations of nitrite (NO2) in water or wastewater. The sensor provides superior measurement performance across multiple wavelengths of light using UV LEDs. Designed to meet the needs of many monitoring applications, the HN2L series offers multiple flow cell designs and sensor path length selections to meet the desired measurement range. FEATURES & BENEFITS Affordable real-time nitrite (NO2) monitoring Ideal for monitoring high concentrations of nitrite Multiple wavelength sensor uses UV LED technology for superior measurement performance Bypass style sensor with multiple flow cell selections to meet application demands Wastewater to high purity water measurement ranges Operator friendly, low maintenance design Quick and simple optical measurements Reagent free operation SIMPLE, PLUG & PLAY NITRITE MONITORING Real Tech’s bypass High Nitrite sensor is a cabinet style instrument installed directly on a wall, railing or system backboard. Sample is supplied to the sensor from a pressurized source or alternatively, from an open-channel using an accessory pumping/cleaning system. The sensor must be connected to a Real Tech controller for operation. EXAMPLE CONFIGURATION Real Controller For affordable, user friendly operation and control High Nitrite Sensor For real-time continuous nitrite measurement Real Clean System For low maintenance automatic cleaning Multiple sensors can be added to Real Tech’s controllers to expand water quality monitoring capabilities.
