- Helical-toothed rack and pinion
- RECKON DRIVES INTERNATIONAL S.A.S.

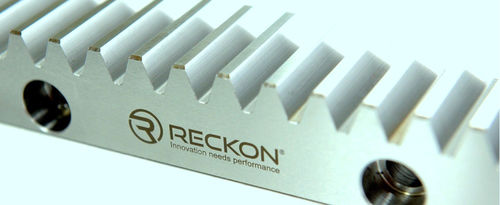

Helical gear rack DIN 5 - 50-55 HRC seriesgroundprecision
Add to favorites
Compare this product
Characteristics
- Teeth
- helical
- Other characteristics
- precision, ground
- Length
Min.: 500 mm
(19.685 in)Max.: 1,000 mm
(39.37 in)
Description
HIGH PRECISION GROUND RACKS FOR CONTINUOUS MOUNTING
Helical teeth (right-hand, 19°31'42")
Teeth ground to DIN 5h23, pressure angle 20°
Sides and bottom ground (Ra=0.8)
Material : C45
Heat treatment : induction-hardening on teeth only (50-55 HRC)
With holes
Catalogs
No catalogs are available for this product.
See all of RECKON DRIVES INTERNATIONAL S.A.S.‘s catalogsOther RECKON DRIVES INTERNATIONAL S.A.S. products
PRECISION RACKS
