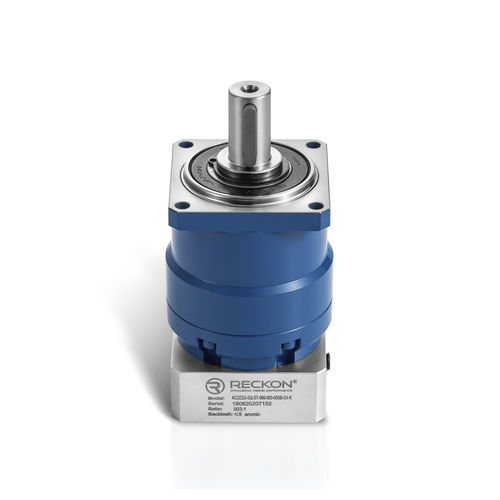

Planetary gearbox LIVELY-SQ-ST series

helical gearcoaxial200 - 500 Nm

ECONOMICAL, RELIABLE, PRECISE Lively SQ is a low-backlash planetary gearbox designed for moderate accelerations or variations of torque. Helical teeth provide silent operation to your servo application. Acceleration capacity+++ Fast reversals+++ Radial load rating++ Axial load rating+ Stiffness++ Precision++++ Economy++++ Suitable to servomotor applicationsYES Number of sizes in this line7 (40 to 220) Standard Angular backlash≤3 or 5 arc-min Optional reduced backlash≤1 or 3 arc-min Available ratios3 to 100 Motor shaft connectionBalanced coupling Lively is an economical, high precision planetary gearbox. Lively's planet carrier is a cage, which provides stiffness and acceleration capacity to your application. It is monobloc with the output shaft. The cage is dual-supported in the inner planetary ring body by means of 2 radial ball-bearings. The planetary ring body is monobloc (belongs to the housing), to reinforce stiffness. This construction improves acceleration capacity and acceptance of torque variations. We recommend this line for applications using application factor Ka<1.35 (refer to the information section for more details about application factors).
