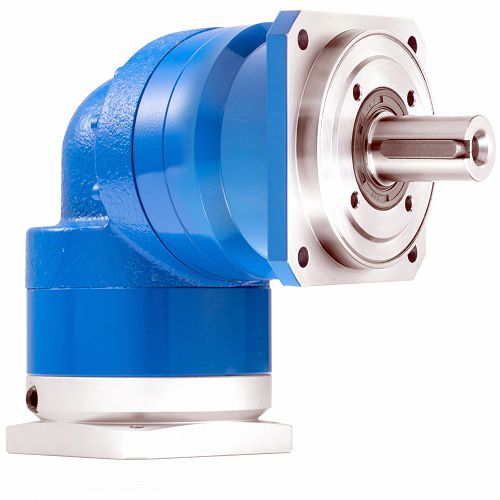

Planetary gearbox LIVELY-CI-RA series

helical gearright angle200 - 500 Nm

ECONOMICAL, RELIABLE, PRECISE Lively CI-RA is a helical, low-backlash planetary gearbox designed for moderate acceleration or variations of torque. Acceleration capacity+++ Fast reversals++ Radial load rating++ Axial load rating+ Stiffness++ Precision++ Economy+++ Suitable to servomotor applicationsYES Number of sizes in this line4 (60 to 140) Angular backlash8 arc-min Available ratios3 to 100 Motor shaft connectionBalanced coupling Lively RA is an economical, right-angle, low-backlash planetary gearbox. Internal gears are helical, to provide a quiet operation to your application. The planet carrier is a cage, to provide stiffness and acceleration capacity. It is monobloc with the output shaft. The cage is well-maintained inside the inner planetary ring by means of 2 radial ball-bearings (one on each side of the gears, what guarantees the perfect alignement of planet gears with sun and ring gear during operation). The planetary ring is monobloc (belongs to the housing), to reinforce stiffness. This construction improves both acceleration capacity and acceptance of torque variations. We recommend this line for applications using application factor Ka<1.35 (refer to the information section for more details about application factors).
