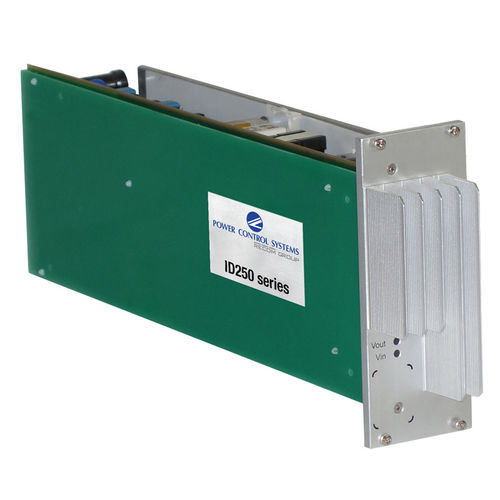

Pure sine wave DC/AC inverter I series

overloadshort-circuit proofalternating current

Modular inverters from 200W up to 5kW Designed for ground mobile, railway or industrial automation use Input: 12/24VDC or up to 110VDC Output: single or three phase synthetic sine wave High efficiency Depending on application, inverter families generate single-phase or multiphase output voltage or current. These robust solutions are ideal for any type of mobile or stationary application requiring an alternating current supply where only direct current is available. The core of the converter consists of a static DC-AC converter designed for continuous operation with high efficiency. The frequency and voltage-adjustable output is galvanically isolated as a single-phase or three-phase voltage supply from DC batteries supplying anything from 12 or 24V up to 110V or higher intermediate circuit voltages ranging from 220 to 1,100V DC as well as EV batteries. The PURE SINE WAVE output is digitally controlled, short-circuit proof, and highly overloadable. In mechanical terms, the solutions are available for 19” rack, open frame or chassis assembly and can be modified to customer specification and application. The following designs are intentionally developed as platform solutions, which enable RECOM to modify fast, easily and cost efficient these solutions to different customer needs.
