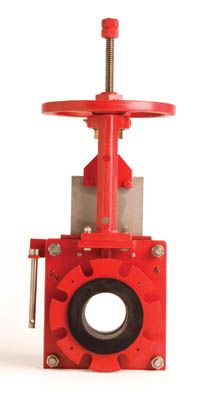

Knife gate valve DX

with handwheelfor sludgedischarge

Red Valve's Series DX Slurry Knife Gate Valve is recognized as the most durable and user friendly knife gate valve designed for difficult slurry applications. When the valve opens, the Series DX's reinforced elastomer sleeves seal against each other and provide a 100% full-port opening, which minimizes turbulence, which in turn eliminates wear. The seats isolate and protect all metal parts of the valve from coming in contact with the process. When the valve is closed, the sleeves provide a drop-tight seal. Another unique feature to this valve is its ability to provide drop-tight shut off in both directions. Each time the valve strokes, the Series DX Valve is designed to discharge a small amount of slurry out of the valve, which keeps the gate path and seat area clear of entrapped particulates. Unlike traditional knife gate valves, the DX prevents slurry build-up in the seat area, which might otherwise prohibit the valves ability to close. A wiper blade mounted to the top of the valve eliminates process from leaking out of the top. The wiper blade also prevents external grit and debris from entering the valve body. An optional secondary packing gland is available for high cycle rate applications, which eliminates leakage through the top 100%!
