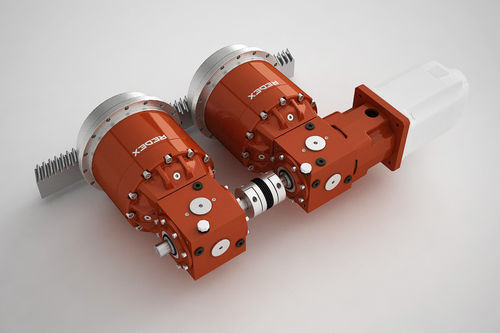

Twin-drive gear reducer Dual KRP+

planetarycoaxialright angle

KRP+ the ‘KIT’ concept includes output flange mounting and integral output pinion which are dedicated to rack & pinion applications. KRP+ planetary reducers are the SingleDRIVE components in a family of reducers dedicated to Rack & Pinion and Rotary Table drive applications. They can be used alone as a single drive or combined with a second unit to create a ZERO-BACKLASH linear or rotary Axis. As A SingleDRIVE, the KRP+ features an integral output pinion and planetary gear train that have been optimized for minimum backlash (1 – 3 arc minutes) and maximum STIFFNESS ON RACK. DualDRIVE kit combines two KRP+ reducers in a patented, mechanically preloaded ZERO-BACKLASH system. The two units are torsionally preloaded against the rack in this closed loop mechanical system. Only one motor is required to drive the axis. Two KRP+ reducers can also be combined together in an electrically preloaded TwinDRIVE kit. Backlash is eliminated using two motors, one to drive the axis and one to preload the axis.
