Rack-and-pinion screw jack
metal

rack-and-pinion screw jack
rack-and-pinion screw jack
rack-and-pinion screw jack
rack-and-pinion screw jack
rack-and-pinion screw jack
rack-and-pinion screw jack
rack-and-pinion screw jack
Add to favorites
Compare this product


Characteristics

Type
rack-and-pinion
Material
metal
Load

Min.: 800 N

Max.: 160,000 N

Torque

Min.: 8 Nm
(6 ft.lb)

Max.: 18,240 Nm
(13,453 ft.lb)

Stroke

Min.: 62.83 mm
(2.47 in)

Max.: 716.28 mm
(28.2 in)

Speed

0.6 m/s
(1.97 ft/s)

Description

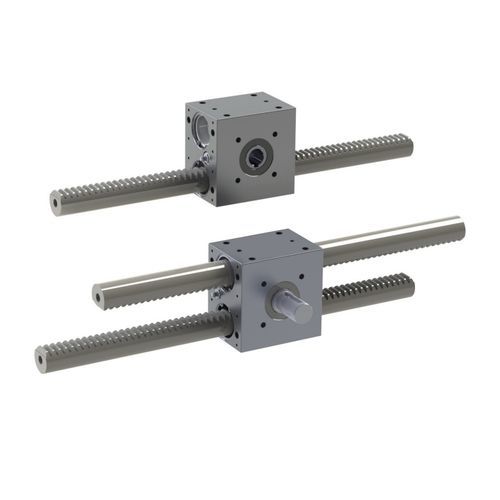

The Rack Jack range of products from WMH-Herion provides simple, cost effective lifting or precise positioning of loads from 180 – 1800 Lbs. Rack Jacks come in 3 sizes and are available with one or two pushers (racks). Based on the simple mechanical principle of rack and pinion combined with a robust square housing, Rack Jack ensures reliable operation for a long lifetime. Four standard input options as well as customized designs are available.
