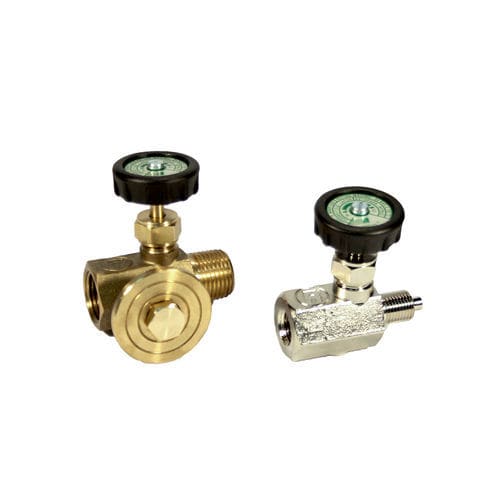

Needle valve 6 series

manualisolationfor water

The minifluid series valves are the best price of the entire range of Redfluid needle valves. They are miniature needle valves for low and medium pressure circuits up to 64 bar and 100ºC. They are usually suitable for oil, compressed air, or water, and made solely of brass. They have an extensive range of possibilities in terms of connections and configurations. They are often used as taps to isolate and purge pressure gauges. Connections NPT (ANSI / ASME B1.20.1), BSP or Cylindrical GAS (DIN 259), SW (ANSI B16.11); With flanged check. Packing O-ring in NBR, although it can be supplied in viton FKM or PTFE Closure Metal-metal. We manufacture different types of BRASS MINIFLUID SERIE VALVES: Female x Female Male x Male Male x Female Twin Ferrule Compression Fitting (double ring) for 4, 6, 8, 10 and 12 tube. Quick Compression Fittings for tubes of 4, 6, 8, 10 and 12. With Double Valve Optional for all configurations: Test flange for standard pressure gauge. Drain Plug Benefits – The minifluid valve or pressure gauge valve is ideal for pressure measuring instruments, it is an economical way to regulate the flow and the smooth entry of flow to the instrument without damaging it. – It allows for draining the circuit, preventing it from remaining pressurized. Avoid stagnant fluid in the process of damaging your instruments. – It is made of brass, which is durable and compatible with a multitude of fluids. – Optionally has a test connection that will allow you to verify the accuracy of your measurements with ease.
