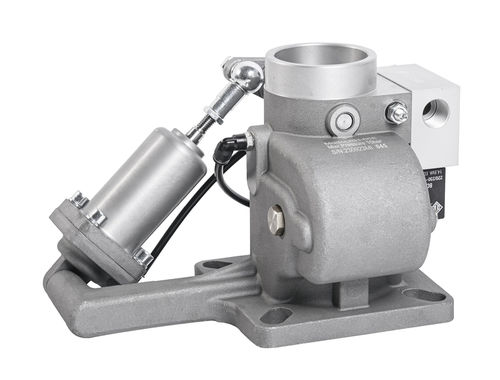

Pneumatic valve RH/RMpressure-controlfor airfor compressors
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Function
- pressure-control
- Media
- for air
- Applications
- for compressors
- Associated function
- injection
- Other characteristics
- normally closed, emergency
- DN
Max.: 300 mm
(11.811 in)Min.: 40 mm
(1.575 in)- Pressure
15 bar
(217.6 psi)- Temperature
Max.: 120 °C
(248 °F)Min.: -20 °C
(-4 °F)- Flow rate
Max.: 120 m³/min
(4,237.76 ft³/min)Min.: 1.5 m³/min
(52.97 ft³/min)
Description
1. Normally closed intake valve, controls pressure input, and opens the intake valve;
2. The entire intake valve adopts a heavy hammer check structure, with low pressure loss and no fuel injection during emergency shutdown conditions;
3. The intake valve control cylinder is independently designed according to the working conditions of the screw air compressor, with a normal operating life of more than 1 million times;
4. There are dust and vibration resistant rings installed at the joint between the butterfly valve stem and valve body, which can effectively prevent wear caused by vibration;
5. The intake valve integrates a relief valve and an inverse proportional valve, with optional accessories: solenoid valve and filter.
Other RedStar AirCompressor Parts Manufacturing Co., Ltd. products
Intake valve / inlet valve
