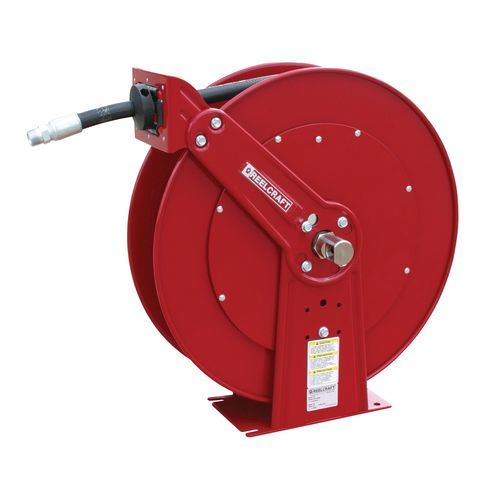

Hose reel 81100 OHP
constructionheavy-dutygrease

hose reel
hose reel
hose reel
hose reel
Add to favorites
Compare this product


Characteristics

Type
hose
Applications
construction, heavy-duty, grease
Drive mechanism
self-retracting
Configuration
with mounting bracket, dual-pedestal
Reel material
steel, cast
Other characteristics
rugged, corrosion-resistant
Hose/cable length

100'00"
(30.48 m)

Diameter

0.7 in

Load

127 lb
(57.6 kg)

Pressure

4,800 psi

Description

The Reelcraft Series 80000 spring retractable, dual pedestal hose reel incorporates the most current design and manufacturing techniques ultimate performance. The Series 80000 is one of our biggest, toughest reels making it suitable for a wide variety of applications. • Robust, dual pedestal base mounts to any load-bearing surface – built for maximum durability and offers performance and longevity in the harshest conditions • Five-in-one, heat treated aluminum casting saves space and eliminates leaks • Two sealed ball bearings for smooth rotation of the main shaft • High pressure 3/8 in. x 100 ft. S.A.E. 100R2T two wire braid hose included • Versatile reel inlet can be connected to the fluid source on the right or left side • Guide arm adjusts to 4 different positions • Structural steel components are individually powder-coated then assembled; this results in a long-lasting, corrosion-resistant finish • Base plate constructed from 7 gauge steel, upright and guide arm are 11 gauge steel, and the spool is 16 gauge steel • Additional Series 80000 spring retractable hose reel models include stainless steel, twin hydraulic, fuel delivery, pressure wash, and gas/cable welding • Made in the USA
