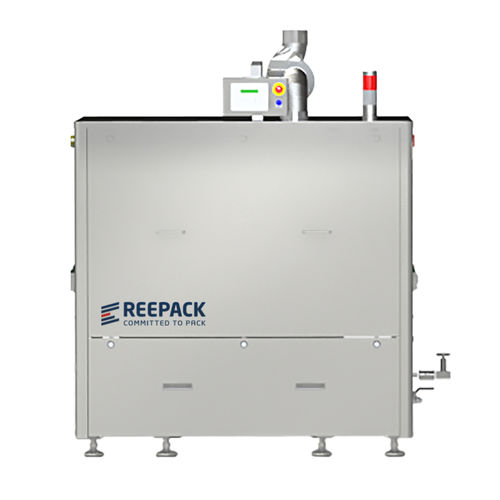

Electric shrink tunnel ST 100

steam

The Reepack ST100 shrink tunnel is a fully automatic in-line waterfall tunnel. A hot water cascade is used to shrink a suitable pouches material in continuous throughput enables cost-effective shrinking of large production volume. The tunnel enables energy-saving operation due to the high quality insulation preventing heat loss. Features as follow : - Stainless steel construction - Display with programs to record - Electrical or steam heating - Dry run security - Conveyor speed adjustable - Automatic water temperature control - Pre-heating timer - Photocell detection reducing shower process - Operation without shower process , just conveyor motion Maximum product height: 300 mm Volume of water: 190 lt Max adjustable temperature: 95° C Height belt conveyor: 890 mm Heating system: Electric or Steam Power supply: 3 / N / PE AC 400V 50 Hz Overall machine dimension 1550 x 1500 x H1850 mm Stainless steel outfeed roll tables with drainer Stainless steel steam aspirator
