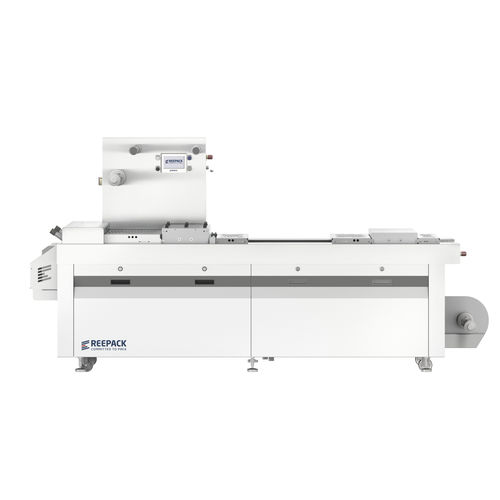

Plastic film thermoforming machine REEFORM E series

for food packagingautomaticcompact

Compact thermoforming machines E05 for small & medium production output. Machines frame in stainless steel for an easy sanitization in wash down environments. An open frame enables to go through all the parts of the machines for checking and maintenance. Equipment System well tidy into the machine frame and protected from any damage. An user-friendly control panel introduce the operators with an easy setting and recording of different programs, programmable movements result in a maximum flexibility with respect to the different formats and products. Processing flexible film with thickness up to 300 micron and a film width up to 420 mm. Tray provide a maximum forming depth until 80 mm. with a maximum cut-off up to 300 mm. Machine only need air pressure for Forming and Sealing, Processing Stations are all electric in motion, so that a good saving in energy and little maintenance give a good return of the investment. NOISE FREE Machine length: 3400 mm Machine width: 1015 - 1055 - 1115 mm (according to bottom film width) Machine height: 1700 mm Cut-off length: 200 - 240- 270- 300 mm Bottom film: 320 mm - 360 mm - 420 mm Product Loading area: 600-720-810-600 mm Free position:3-3-3-2 Machine cycle: From 4 to 8 Cycles / min. Air pressure: 6 - 10 bar (600-1200 Nl / min.) Power supply: 8 - 18 Kw Water consumption: 50 - 80 L / h - 1,5 - 2,5 bar (18 - 22°C) Weight: 1000 - 1200 Kg
