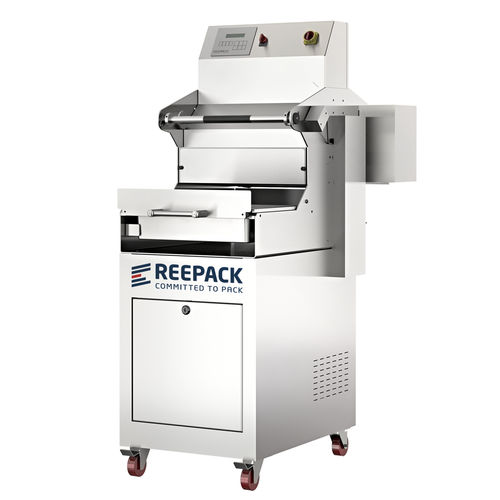

Linear tray sealer REETRAY 30

semi-automaticfor the food industryvacuum

The Semi Automatic Machines suitable to pack in MAP and VSP Reetray 30 a semi-automatic tray sealer specially designed for Modified Atmosphere (MAP) and Vacuum Skin Package (VSP) in preformed tray or on cardboard support for food-stuff in portion. Mobile stand on wheels available with two different vacuum pump power: 40 or 60 cbm. User-friendly HMI controller permits to set and record different programs, as for : - Vacuum and Gas processing - Inert gas over-pressure - Multi-cycle Vacuum and Gas - Vacuum Skin processing Automatic film waste rewinding and photo-cell for printed film makes the machine complete for a better packaging. High performance and reliability in every working condition: medium or high production. Ideal for medium sized operations and well-suited for larger companies in marketing tests for new products. Overall dimensions: 710 x 1080 x 1600 mm Weight: 215 Kg Max tray dimensions, ext : 430 x 305 mm Max tray depth: 95 (150) mm Max width of film sealing: 470 mm Max diameter of web roll: 300 mm Diameter of film support shaft: 70/76 mm Vacuum pump: 63m3/h Electrical supply: 3/ N / PE 400V AC - 50Hz Power consumption: Max 4,9 KW Compressed air: 6bar - 7Nl/c Tray lifting device bottom (Standard) Down vacuum chamber 150 mm height Photocell centering for printed film Liquid filter and powder Silenced air compressor
