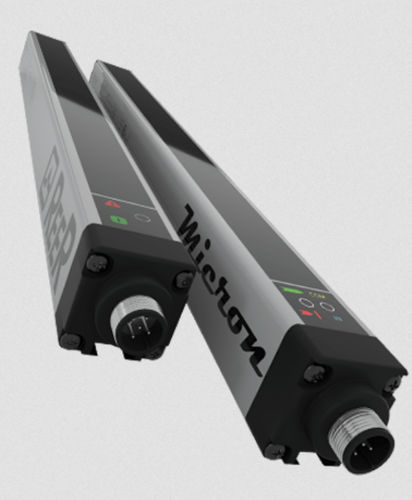

Measuring light curtain MICRON series

multibeamthrough-beamIP65

2 Programmable Static Outputs (PNP) + 2 Programmable Analogue Outputs (4/20 mA) Software configuration: easy to use and extensive parameters choice Max. length connection cables between light curtain and interface: 100 m Features Controlled height (mm) - 145 Max. range (m) - 2.5 Operating temperature (°C) - - 10 ... 55 Number of beams - 30 Signalling - LEDs for light curtain's status and diagnostics Connections - M12 5-pole connector (emitter), M12 8-pole connector (receiver), M5 4-pole connector for programming interface Outputs - 2 analog outputs (0-10 VDC) with programmable functions + 2 solid state 0 or 24 V programmable digital outputs (PNP 100 mA at 24 VDC) Packaging dimensions HxLxW (mm) - 145 x 260 x 200 Programmability - Yes Product class - C Custom tariff - 85365019 Outputs type - 2 analog outputs (4-20 mA)
