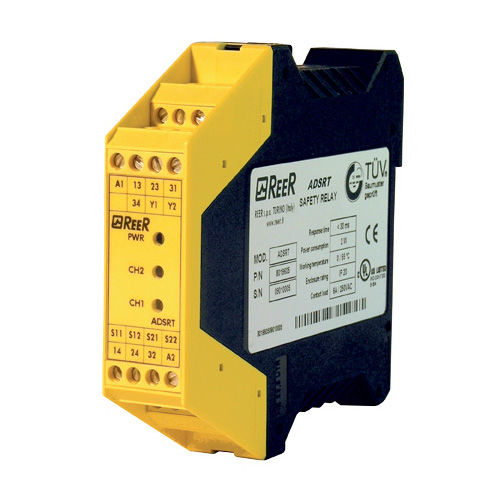

Level monitoring relay AD SRTsafety2 NO1 NC
Add to favorites
Compare this product
Characteristics
- Measured/monitored value
- safety, level
- Contact configuration
- 2 NO, 1 NC
- Mounting
- DIN rail
- Norms
- SIL
- Tripping current
6 A
- Trigger voltage
250 V
Description
Safety interface for two-hand control
Input with 3 or 4 contacts
Certified as Type III C according to the EN 574 standard, monitors the simultaneity between the two inputs (< 0.5 sec)
- Guided-contact safety relays
- Can be used up to Cat. 4, PL e
Features
Safety level - PL e
Safety level (SIL / PL) - PL e - Cat. 4 - Type III C
Operating temperature (°C) - - 25 ... 55
Response time (ms) - ≤ 30
Signalling - LEDs indication for status and diagnostic: power supply, channel 1 and channel 2
Connections - Terminal blocks
MTTFD (ISO13849) years - 36,45
Safety devices to be connected - Two hand scontrol safety devices
Min. switching current at 24 VDC (mA) - 6
Simultaneity (s) - ≤ 0,5
Safety relay outputs - 2 NO (6A at 250 VAC)
Packaging dimensions HxLxW (mm) - 50 x 165 x 110
Product class - C
Custom tariff - 85365080
