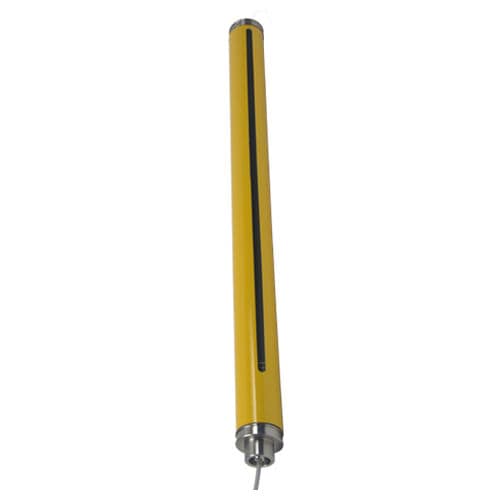

Safety light curtain EOS4 series

multibeamthrough-beamfail-safe

Designed to secure operators working in potentially explosive atmospheres Integrated anti-condensation system Hardware configuration: no programming necessary, easy to install and replace What's in the Box: Emitter, Receiver, Standard Fastening Brackets, Pre-Wired Connection Cable Features Safety level - Type 4 - PL e Protected height (mm) - 610 Resolution (mm) - 30 Controlled height (mm) - 600 Max. range (m) - 17 Restart - Automatic Functioning system - Emitter / Receiver Safety level (SIL / PL) - Type 4 - SIL 3 - SILCL 3 - PL e - Cat. 4 Operating temperature (°C) - - 10 ... 55 Response time (ms) - 9 Number of beams - 31 Max. length of the connection cables (m) - 10 Signalling - LEDs for light curtain's status and diagnostics Safety output type - 2 fail-safe PNP (500 mA at 24 VDC) with protection against short circuit, overload and reverse polarity Connections - Cable output MTTFD (ISO13849) years - 100 PFHD (IEC 61508) - 1,06E-08 Safety outputs - 2 OSSD PNP (500 mA at 24 VDC) Safety functions - With external module Special versions - ATEX Detection - Hand Operating Range (m) - 8 or 17 selectable Protective enclosures - ATEX zone 2, 22 Packaging dimensions HxLxW (mm) - 145 x 910 x 200 Product class - C Custom tariff - 85365019
