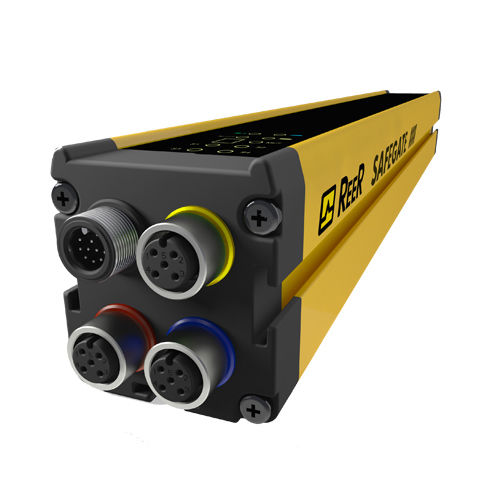

Type 4 safety light curtain SAFEGATE series

multibeamthrough-beamfail-safe

Safety Light Curtain: Type 4, SIL 3, SILCL 3, PL e, Cat. 4 Cross Section: 50 x 55 mm Hardware configuration: no programming necessary, easy to install and replace Connection and configuration through M12 connectors Unshielded cables up to 100 m can be used to connect the Safety Light Curtain What's in the Box: Emitter, Receiver and Standard Fastening Brackets Features Safety level - Type 4 - PL e Protected height (mm) - 310 Resolution (mm) - 30 Controlled height (mm) - 300 Max. range (m) - 12 Restart - Built-in - User selectable automatic or manual Functioning system - Emitter / Receiver Safety level (SIL / PL) - Type 4 - SIL 3 - SILCL 3 - PL e - Cat. 4 Operating temperature (°C) - - 30 ... 55 Response time (ms) - 8 Number of beams - 16 Max. length of the connection cables (m) - 100 Built-in Muting lamp - No Signalling - LEDs for light curtain's status and diagnostics Safety output type - 2 fail-safe PNP (400 mA at 24 VDC) with protection against short circuit, overload and reverse polarity Connections - M12 5-pole male connector (emitter), M12 8-pole male connector (receiver) MTTFD (ISO13849) years - 223,2 PFHD (IEC 61508) - 1,78E-08 Safety outputs - 2 fail-safe PNP (400 mA at 24 VDC) Safety functions - Integrated Detection - Hand Protective enclosures - None Packaging dimensions HxLxW (mm) - 145 x 760 x 200 Product class - C Custom tariff - 85365019
