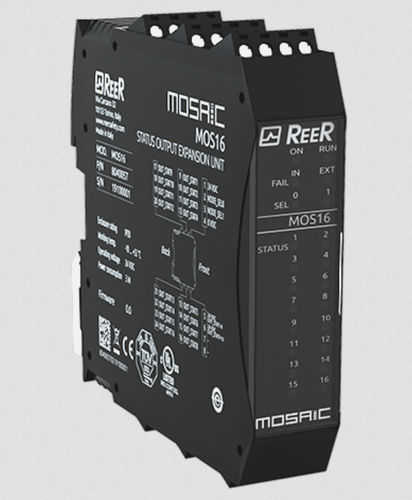

Digital output module MOS seriesModbus16-O8 PNP outputs
Add to favorites
Compare this product
Characteristics
- Signal type
- digital
- Bus
- Modbus
- Number of inputs/outputs
- 16-O, 8 PNP outputs
- Type
- safety
- Mounting
- SIL
- Other characteristics
- programmable
Description
Modules for automation process where status outputs are required. With these expension units, the Mosaic safety controller can be used also as a PLC for process control
Features
Safety level - PL c
Safety level (SIL / PL) - SIL 1 - SILCL 1 - PL c
Operating temperature (°C) - - 10 ... 55
Signalling - LEDs indication for operating status and fault diagnosis. LED indication of the inputs condition
Connections - Removable terminal blocks, screw contacts
MTTFD (ISO13849) years - 30 ... 100
PFHD (IEC 61508) - 6,61E-09
Status outputs - 16 PNP (100 mA)
Storage temperature (°C) - -20 ... +85
MSC connector provided - Yes
Connection with MSC BUS - Yes
Packaging dimensions HxLxW (mm) - 36 x 127 x 113
Product class - C
Custom tariff - 85371091
