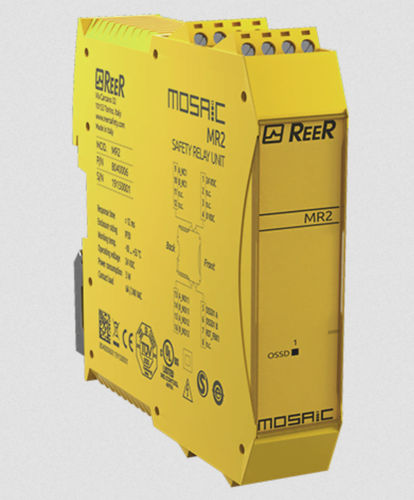

Safety relay module MR series

DIN rail mountedUSB

The MR2 Expansion Units do not require MSC as they are wired directly to the selected OSSD Features Safety level - PL e Safety level (SIL / PL) - SIL 3 - SILCL 3 - PL e - Cat. 4 Operating temperature (°C) - - 10 ... 55 Signalling - LEDs indication for operating status and fault diagnosis. LED indication of the inputs condition Connections - Removable terminal blocks, screw contacts MTTFD (ISO13849) years - The values depend on the type of use. Refer to the technical manual PFHD (IEC 61508) - The values depend on the type of use. Refer to the technical manual Safety relay outputs - 2 NO + 1 NC (6A at 250 VAC) Storage temperature (°C) - -20 ... +85 Housing for MCM - No USB input - No Packaging dimensions HxLxW (mm) - 36 x 127 x 113 Product class - C Custom tariff - 8536490
